Access Cable

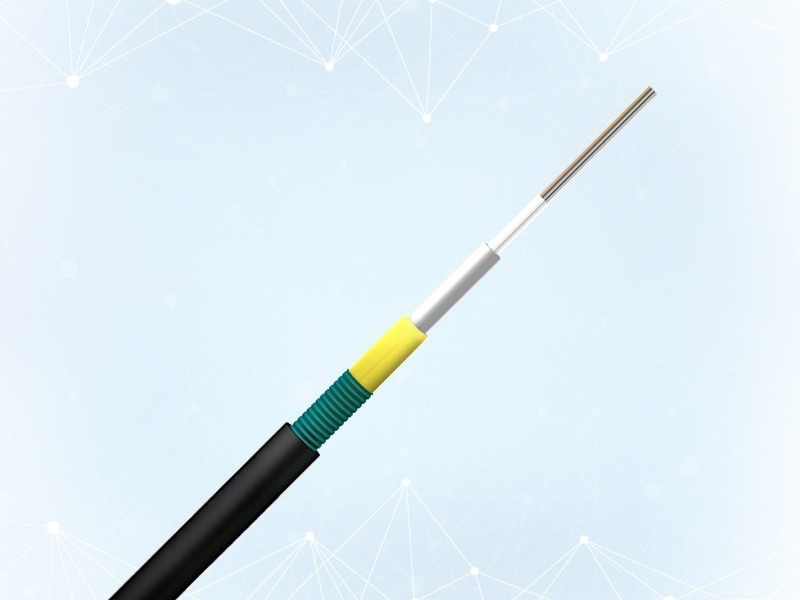

The structure of the ABC-IIS access cable is to insert a Φ250μm optical fiber into a loose tube made of high-modulus material, and the loose tube is filled with waterproof compound. The loose tube is coated with a layer of aramid reinforcing elements, and then a layer of double-sided plastic-coated steel tape (PSP) is used to wrap it, and a layer of low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) is sheathed outer.

Description

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time, you can customize it with special design.

Features:

It has good mechanical properties and temperature characteristics
The loose tube material itself has good hydrolysis resistance and high strength
Good compression resistance and softness
Aramid reinforcing elements ensure the tensile strength of the fiber optic cable
Double-sided plastic-coated steel strip (PSP) improves the moisture permeability of fiber optic cables
Small diameter, light weight, easy to lay

Structural parameters

Fiber optic cable model	Number of fibers	Fiber Optic Cable Reference Weight (kg/km)	Allowable tensile force long/short-term	Allowable Flattening Force Long/Short Term (N/100mm)	Bend Radius Dynamic/Static (mm)
ABC-IIS-ZK-2~12Xn	2～12	80	200/660	300/1000	20D/10D
ABC-IIS-ZK-14~24Xn	14～24	102	200/660	300/1000	20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
