Access Cable

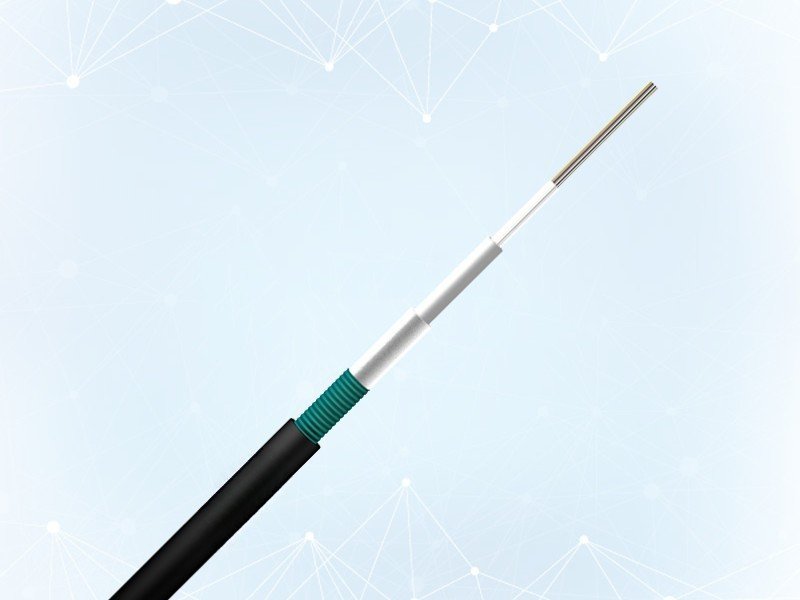

The structure of the ABC-IS access cable is to insert a Φ250μm optical fiber into a loose tube made of high-modulus material, and the loose tube is filled with waterproof compound. The loose tube is covered with a layer of glass fiber reinforced elements, and then a layer of double-sided plastic-coated steel tape (PSP) is used to wrap it, and the outermost layer is extruded with a layer of low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) sheath.

Description

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time, you can customize it with special design.

Features:

It has good mechanical properties and temperature characteristics
The loose tube material itself has good hydrolysis resistance and high strength
Good compression resistance and softness
Fiberglass reinforcement elements ensure the tensile strength of the fiber optic cable
Double-sided plastic-coated steel strip (PSP) improves the moisture permeability of fiber optic cables
Small diameter, light weight, easy to lay

Structural parameters

Fiber optic cable model	Number of fibers	Fiber optic cable reference weight （kg/km）	Allowable tensile force long/short-term （N）	Allowable Flattening Force Long/Short Term (N/100mm)	Bend Radius Dynamic/Static (mm)
ABC-IS-ZK-02~12Xn	2~12	110	200/660	300/1000	20D/10D
ABC-IS-ZK-14~24Xn	14~24	132	200/660	300/1000	20D/10D

Fiber optic cable model

Number of fibers

Fiber optic cable reference weight

（kg/km）

Allowable tensile force long/short-term

（N）

Allowable Flattening Force Long/Short Term
(N/100mm)

Bend Radius Dynamic/Static
(mm)

ABC-IS-ZK-02~12Xn

2~12

110

200/660

300/1000

20D/10D

ABC-IS-ZK-14~24Xn

14~24

132

200/660

300/1000

20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Active mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
