Butterfly Drop Indoor Fiber Optic Cable for Access Network

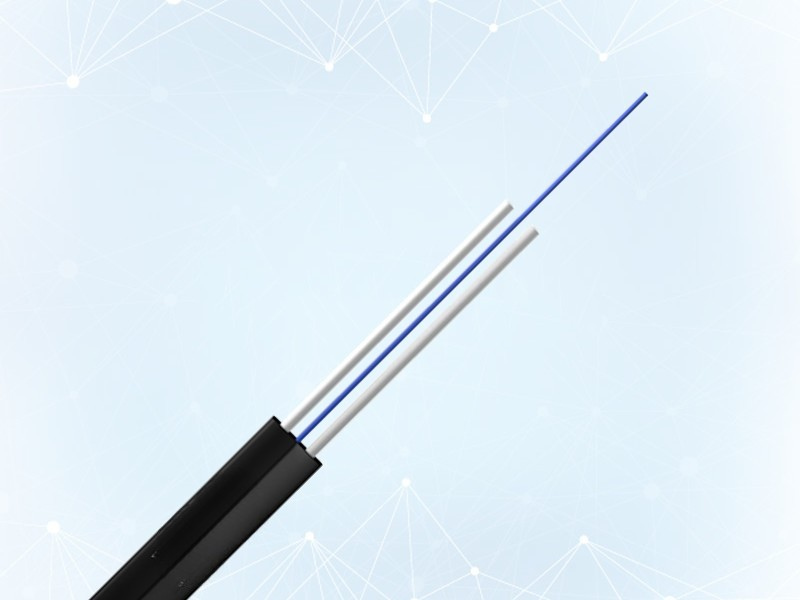

The butterfly entry indoor optical cable for access network is to place the optical communication unit in the center, place two parallel metal or non-metal reinforcing elements on both sides, and finally, extrude the black or color LSZH sheath into a cable.

Description

Features:

• Special bend-resistant optical fibers provide greater bandwidth and enhance network transmission characteristics

• Two parallel reinforcing elements make the cable have good compressive performance and protect the optical fiber

• The optical cable has simple structure, light weight and strong practicability

• Unique groove design for easy peeling and splicing, simplifying installation and maintenance

• Low-smoke halogen-free flame retardant sheath, environmentally friendly

Structural parameters

Fiber optic cable model	Number of cores	Fiber optic cable size （mm）	Fiber optic cable reference weight （kg/km）	Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static （mm）
GJXFH -1Xn	1	(2.0±0.1)×(3.0±0.1)	8	40/80	500/1000	40/20
GJXFH -2Xn	2	(2.0±0.1)×(3.0±0.1)	8.5	40/80	500/1000	40/20
GJXFJH -1Xn	1	(2.0±0.1)×(3.8±0.1)	9	40/80	500/1000	40/20
GJXFDH -4Xn	4	(2.0±0.2)×(4.0±0.2)	10	40/80	500/1000	40/20

Storage and use temperature: -20°C~+60°C. Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Active mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
