Butterfly Drop Indoor Fiber Optic Cable for Self-Supporting Access Networks

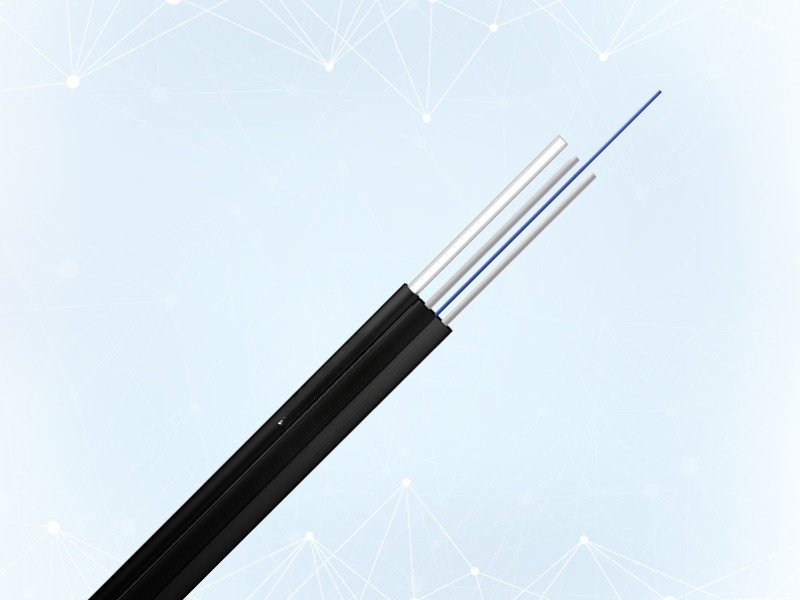

The butterfly-shaped indoor optical cable for self-supporting access network is to place the optical communication unit in the center, place two parallel metal or non-metal reinforcing elements on both sides, attach a steel wire reinforcing element on the outside, and finally, extrude black or color low smoke halogen-free sheath into a cable.

Description

Features:

Special bend-resistant fibers provide greater bandwidth and enhanced network transmission characteristics
Two parallel reinforcing elements make the cable have good compressive performance and protect the optical fiber
A single steel wire is attached with a reinforcing element to make the fiber optic cable have good tensile performance
The optical cable has simple structure, light weight and strong practicability
The unique groove design is easy to peel off and easy to splice, simplifying installation and maintenance
Low-smoke halogen-free flame retardant sheath, environmentally friendly

Structural parameters

Fiber optic cable model	Number of cores	Fiber optic cable size （mm）	Fiber optic cable reference weight （kg/km）	Allowable tensile force long/short-term （N)	Allowable Flattening Force Long/Short Term (N/100mm)	Bend Radius Dynamic/Static (mm)
GJYXFCH-1Xn	1	(2.0±0.1)×(5.0±0.1)	20	300/600	1000/2200	40/20
GJYXFCH-2Xn	2	(2.0±0.1)×(5.0±0.1)	20	300/600	1000/2200	40/20
GJYXFCJH-1Xn	1	(2.0±0.1)×(5.6±0.1)	21	300/600	1000/2200	40/20
GJYXFCDH -4Xn	4	(2.0±0.2)×(6.0±0.2)	22	300/600	1000/2200	40/20

Storage and use temperature: -20°C~+60°C. Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Active mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
