GJXH butterfly hybrid cable

GJXH butterfly hybrid cable

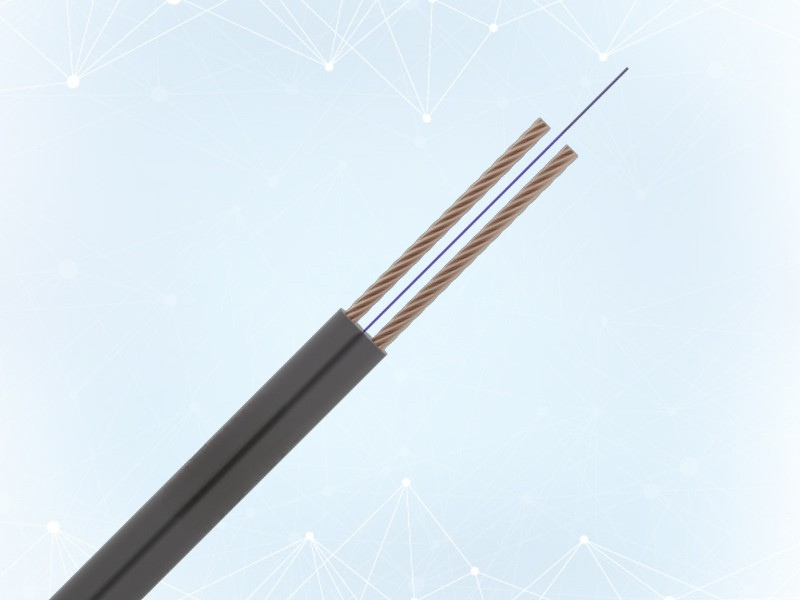

Butterfly photoelectric hybrid cable, single-mode optical fiber, copper wire, low-smoke halogen-free polyolefin material extrusion, composed of optical unit, electrical unit and sheath (red color stripe on one side), its shape is in the shape of “butterfly cable”.

Description

Features:
  • Optoelectronic integration solves the problem of equipment power consumption and signal transmission, and provides centralized monitoring and maintenance of equipment power supply
  • Improve power supply manageability and reduce power supply coordination and maintenance
  • Reduce procurement costs and save construction costs
  • Prefabricated optoelectronic integrated connector on the network side
  • 4G/5G base stations, WiFi equipment, security equipment, traffic monitoring equipment, climate detection systems, etc
  • Small outer diameter, light weight and small footprint
  • Suitable for pipe laying
Environmental characteristics
  • Transportation/storage temperature: -20°C~+60°C
Length of delivery
Recommended length: 1000m; Other lengths are available upon request
Insulated conductor electrical properties
Conductor specifications Single conductor 20°C

Maximum DC resistance

 20°C insulation resistance

(MΩ・km)

 Insulation voltage strength

(KV, DC 1 min.)
(mm) (Ω/km) Between each insulated wire and other metal connected to the cable Between conductors
10*0.20 57.8 >500 2
