Indoor Fiber Optic Cable

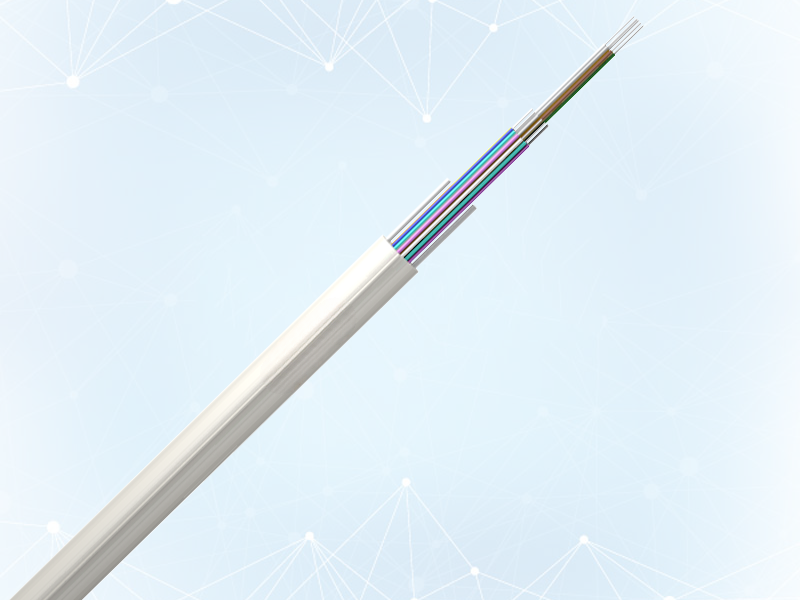

Indoor easy-to-connect RFC cables can be made of Compact Fiber Coated (RFC-I) as the optical transmission medium, with an outermost layer of low smoke and halogen free material (LSZH) sheath and two parallel FRPs embedded as load-bearing tensile elements, with a maximum number of 24 cores.

Description

Features:

Low-smoke halogen-free sheath to ensure good flame retardant properties
Ideal for pre-connectivity
Small size, ointment-free structure, easy to branch and splice installation

Structural parameters

Fiber optic cable model	Number of fibers	Fiber optic cable reference weight （kg/km）	Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static (mm)
RFC-I-X-XX-2~24Xn	2~4	42	500/200	1000/300	20D/10D
12	60
24	90

Fiber optic cable model

Number of fibers

Fiber optic cable reference weight

（kg/km）

Tensile force is allowed

Long-term/short-term

（N）

Allowable squashing force

Long-term/short-term

（N/100mm）

Bend radius

Dynamic/Static
(mm)

RFC-I-X-XX-2~24Xn

2~4

500/200

1000/300

20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	The length of the 10 Gigabit Ethernet link	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
