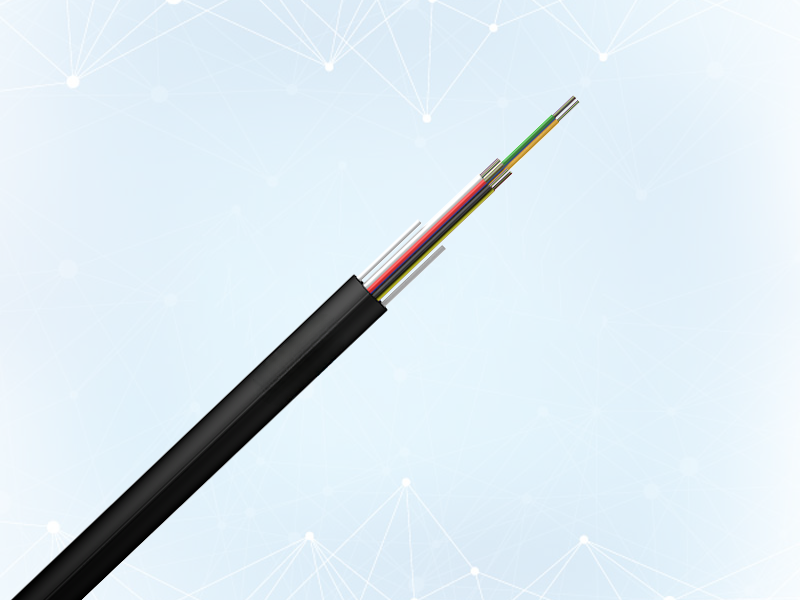

Indoor Fiber Optic Cable

Indoor easy-to-connect RFC cables can use multi-core micro-beam tubes (RFC-II) as the optical transmission medium, with an outermost layer of low smoke and halogen-free material (LSZH) sheath and two parallel FRPs embedded as load-bearing tensile elements, with a maximum number of 288 cores.

Description

Features:

Low-smoke halogen-free sheath to ensure good flame retardant properties
Ideal for pre-connectivity
The optical fiber capacity is large, the structure is free of ointment, and it is easy to branch and splice installation

Structural parameters

Fiber optic cable model	Number of fibers	Fiber optic cable reference weight （kg/km）	Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static (mm)
RFC-II-X-XX-4~144Xn	12	49	500/200	1000/300	20D/10D
	24	56
	48	80
	96	100
	144	120

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	The length of the 10 Gigabit Ethernet link	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
