Indoor Fiber Ribbon Cable

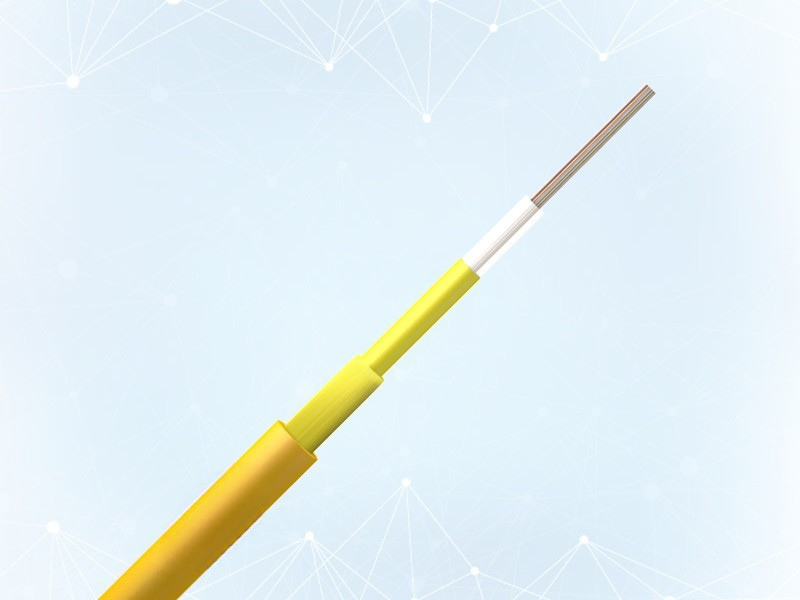

RNC indoor fiber optic ribbon cable uses optical fiber ribbon as the optical transmission medium, and the fiber tape is sleeved into a loose tube made of high-modulus material, and then coated with a layer of aramid reinforcing elements. The outermost layer is extruded with a layer of polyvinyl chloride (PVC) sheath.

Description

Product Applications

• Indoor wiring

• Interconnection of instruments and communication equipment

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time,
you can customize it with special design.

Features:

• Optical fiber ribbon is adopted, and the integration is high

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	The number of fiber cores is composed	Fiber optic cable reference weight （kg/km）	Tensile force is allowed Long-term/short-term （N)	Allowable squashing force Long-term/short-term (N/100mm)	Bend radius Dynamic/Static (mm)
GJFDV-X-48Xn	12F×4	84	200/660	300/1000	25D/12.5D
GJFDV-X-72Xn	12F×6	90	200/660	300/1000	25D/12.5D
GJFDV-X-96Xn	12F×8	100	200/660	300/1000	25D/12.5D
GJFDV-X-144Xn	12F×12	125	200/660	300/1000	25D/12.5D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
