Indoor Multicore Micro Fiber Optic Cable

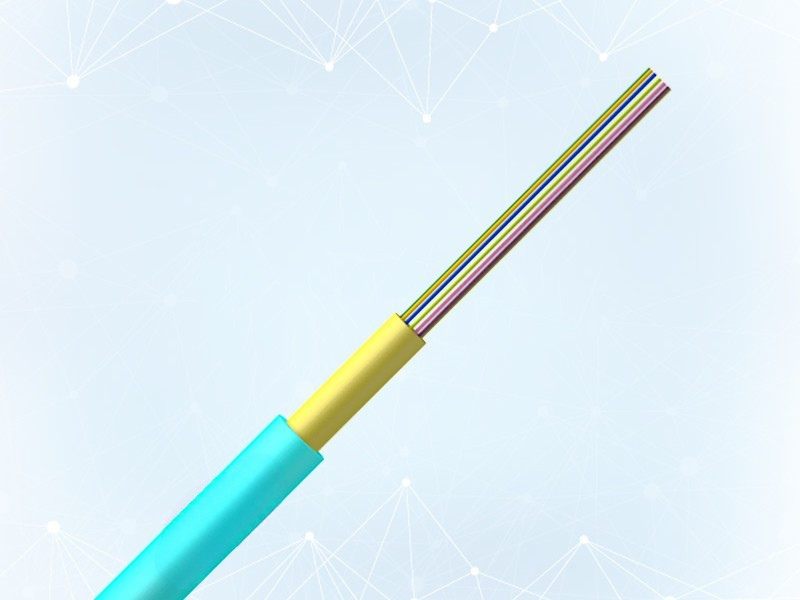

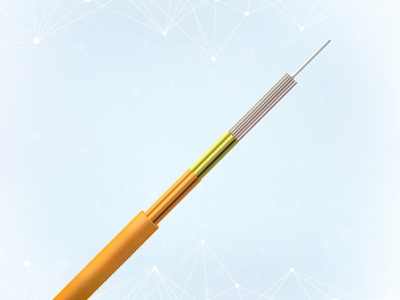

MFC indoor multi-core micro optical cable is made of multiple colored optical fibers as optical transmission medium, covered with a layer of aramid as a force reinforcement unit, and squeezed with a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.

Description

Product Applications

Indoor integrated wiring
Data Centers

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need to meet multiple requirements at the same time,
you can customize it with special design. PVC products that have passed UL OFNR and OFNP certifications respectively; LSZH products are available in different materials and can meet the requirements of
IEC60332-1 or IEC60332-3C.

Features:

• Colored optical fibers with high integration

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	Fiber optic cable diameter （mm）	Fiber optic cable reference weight （kg/km）	Allowable tensile force long/short-term （N）	Bend radius dynamic/static （mm）
MFC-X-XX-12Xn	3.0±0.2	4.8	6.3	30/100	20D/10D
MFC-X-XX-24Xn	3.8±0.2	6.5	8.0	50/150	20D/10D

Fiber optic cable model

Fiber optic cable diameter

（mm）

Fiber optic cable reference weight

（kg/km）

Allowable tensile force long/short-term

（N）

Bend radius dynamic/static

（mm）

PVC sheath

LSZH sheath

MFC-X-XX-12Xn

3.0±0.2

4.8

6.3

30/100

20D/10D

MFC-X-XX-24Xn

3.8±0.2

6.5

8.0

50/150

20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Active mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
