Indoor Multicore Micro Fiber Optic Cable

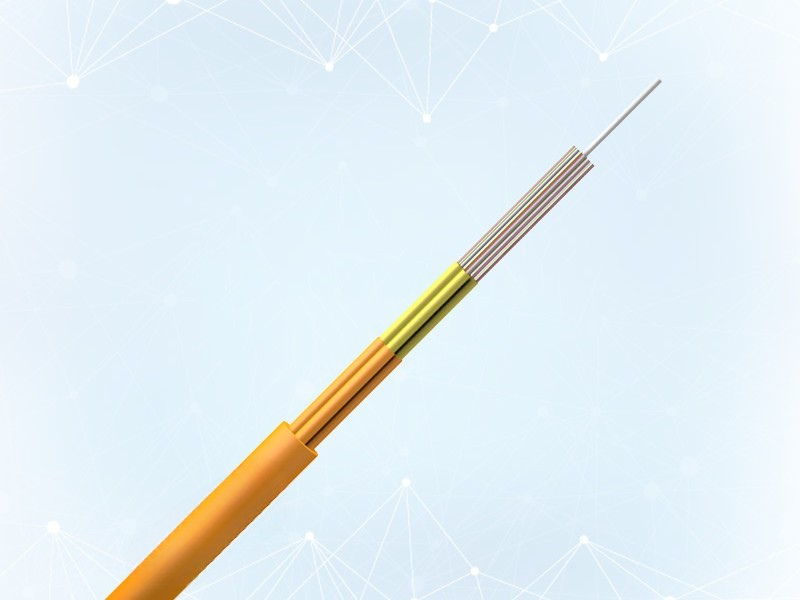

MFC multi-core micro fiber optic cable is made of 12-core sub-unit (Φ250μm coloring fiber, aramid reinforcing element), non-metallic center reinforcing core, optical cable sub-unit layer twisted in the center reinforcing core to form a cable core, and the outermost layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) sheath.

Description

Product Applications

Indoor integrated wiring
Data Centers

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need to meet multiple requirements at the same time,
you can customize it with special design. PVC products that have passed UL OFNR and OFNP certifications respectively; LSZH products are available in different materials and can meet the requirements of
IEC60332-1 or IEC60332-3C.

Features:

• Colored optical fibers with high integration

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	Fiber optic cable diameter （mm）	Fiber optic cable reference weight （kg/km）		Allowable tensile force long/short-term （N）	Bend Radius Dynamic/Static (mm)
Fiber optic cable model	Fiber optic cable diameter （mm）	PVC sheath	LSZH sheath	Allowable tensile force long/short-term （N）	Bend Radius Dynamic/Static (mm)
MFC-X-XX-24Xn	9.6±0.3	64	72	150/500	20D/10D
MFC-X-XX-36Xn	9.6±0.3	64	72	150/500	20D/10D
MFC-X-XX-48Xn	9.6±0.3	64	72	150/500	20D/10D
MFC-X-XX-72Xn	11.3±0.3	92	103	150/500	20D/10D
MFC-X-XX-96Xn	13.3±0.3	129	146	150/500	20D/10D
MFC-X-XX-144Xn	15.5±0.3	160	250	150/500	20D/10D
MFC-X-XX-168Xn	15.5±0.3	150	250	150/500	20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
