Mobile Fiber Optic Cables

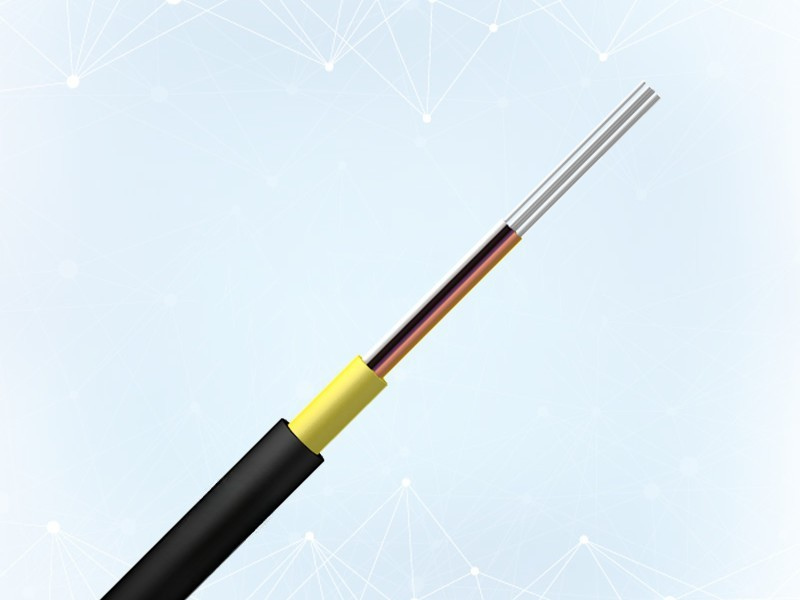

MOC mobile optical cable is made of multiple Φ900μm flame retardant tight-jacketed optical fibers as the optical transmission medium, covered with a layer of aramid as the stress reinforcement unit, and extruded with a layer of polyurethane (PUR) sheath.

Description

Product Applications: • Transmission of communications in oil fields, mining operations, radar, etc

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time, you can customize it with special design.

Features:

• Tightly sheathed fiber for easy stripping and use

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	The number of fiber cores is composed	Fiber Optic Cable Reference Weight (kg/km)	Allowable tensile force long/short-term （N）	Allowable flattening force long/short-term （N/100mm）	Bend radius dynamic/static （mm）
MOC-G-UX-2Xn	6.0±0.3	30	500/1500	1000/5000	20D/10D
MOC-G-UX-4Xn	6.0±0.3	30	500/1500	1000/5000	20D/10D
MOC-G-UX-6Xn	6.6±0.3	35	500/1500	1000/5000	20D/10D

Fiber optic cable model

The number of fiber cores is composed

Fiber Optic Cable Reference Weight
(kg/km)

Allowable tensile force long/short-term

（N）

Allowable flattening force long/short-term

（N/100mm）

Bend radius dynamic/static

（mm）

MOC-G-UX-2Xn

6.0±0.3

500/1500

1000/5000

20D/10D

MOC-G-UX-4Xn

6.0±0.3

500/1500

1000/5000

20D/10D

MOC-G-UX-6Xn

6.6±0.3

500/1500

1000/5000

20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Active mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
