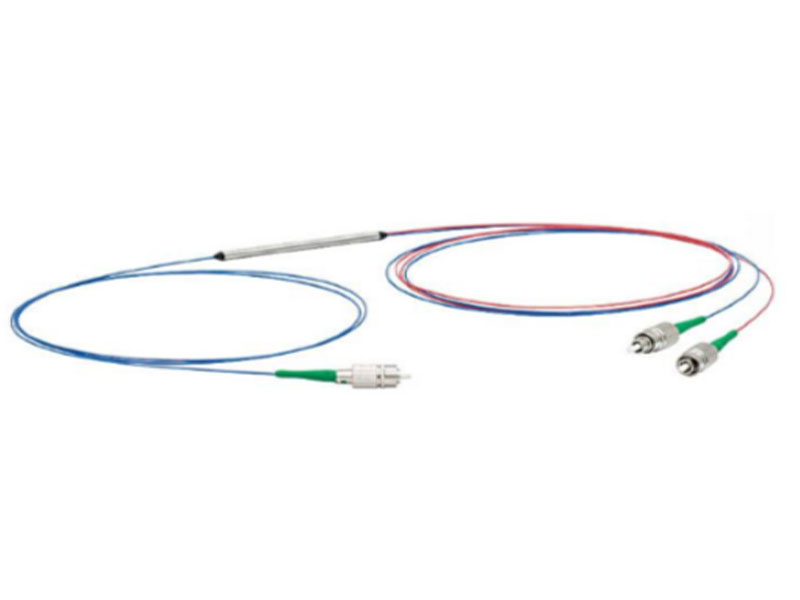

Molten taper splitter

The single-mode optical fiber splitter is manufactured by fused tapering process (FBT), and its performance indicators and reliability have reached the advanced level of similar products in the world. The very low add-on losses greatly enhance the reliability and long-term stability of the device.

Description

Product standards: It meets Telcordia GR-1209-CORE Issue 4 and Telcodia GR-1221-CORE Issue 3 standards, YD/T2000.1-2009 standards and RoHS regulations.

Features:

The all-fiber structure has excellent optical properties, and its stability, uniformity, and directionality are good.
Additive, low insertion loss, low polarization-dependent loss.
The splitting ratio can be selected.
Connectors are available in SC/LC/FC, and other types can be customized.

Ordering information

Production process	Splitting ratio	Form factor	End-forming method	Plug type	Pigtail type	Enter the pigtail length
P=PLC	1002=1：2	M = miniature package	F = pigtail with plug	SU=SC/UPC	25 = 0.25mm bare fiber	05 = 0.5 meters
F=FBT	1004=1：4	B = Box package	N = pigtail without plug	SA=SC/APC	09 = 0.9mm loose tube	10 = 1.0 meters
—	1008=1：8	P = Chip package	A = Adapter type	FU=FC/UPC	20=2.0mm loose tube	15 = 1.5 meters
—	1016=1：16	T = tray package	—	FA=FC/APC	30 = 3.0mm loose tube	20 = 2.0 meters
—	1032=1：32	R = Rackmount package	—	LU=LC/UPC	—	XX = custom length
—	1064=1：64	—	—	LA=LC/APC	—	—
—	2002=2：2	—	—	—	—	—
—	2004=2：4	—	—	—	—	—
—	2008=2：8	—	—	—	—	—
—	2016=2：16	—	—	—	—	—
—	2032=2：32	—	—	—	—	—
—	2064=2：64	—	—	—	—	—

PN=Y-Production Process-Splitting Ratio-Packaging Type-Termination Method-Plug Type-Pigtail Type-Input Pigtail Length-Output Pigtail Length

Example: PN: YP-1008-B-F-SU-20-10-20

Representation: PLC type 1:8 cassette package, pigtail ends, connector type SC/UPC, pigtail using 2.0mm loose tube, input end length 1.0 meters, output end length 2.0 meters.
