Multipurpose Breakout Cables

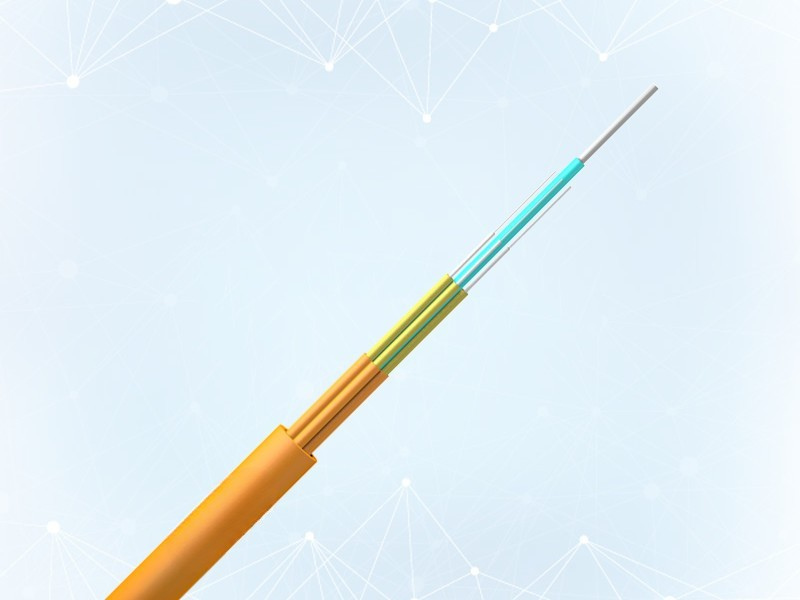

BOC multi-purpose optical cable uses a single-core optical cable (Φ900μm tightly sheathed optical fiber, aramid reinforcing element) as a sub-unit, a non-metallic center reinforcing core, and the optical cable sub-unit layer is twisted in the center reinforcing core to form a cable core, and the outermost layer is extruded with a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) sheath.

Description

Product Applications

• Indoor cabling

• Fiber optic cables that serve as the backbone of the building

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time,
you can customize it with special design. In addition to ordinary PVC products, there are also products that have passed UL OFNR certification; LSZH products are available in different materials and
can meet the requirements of IEC60332-1 or IEC60332-3C.

Features:

• Stranded cable structure, non-metallic center reinforcing core enables the cable to withstand greater tensile force

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

• Aramid reinforced elements make the cable have excellent tensile performance

Structural parameters

Fiber optic cable model	Fiber optic cable diameter （mm)	Fiber Optic Cable Reference Weight (kg/km)		Tensile force is allowed Long-term/short-term (N)	Allowable squashing force Long-term/short-term (N/100mm)	Bend radius Dynamic/Static (mm)
Fiber optic cable model	Fiber optic cable diameter （mm)	PVC sheath	LSZH sheath	Tensile force is allowed Long-term/short-term (N)	Allowable squashing force Long-term/short-term (N/100mm)	Bend radius Dynamic/Static (mm)
BOC-X-XX-04Xn	7.4±0.5	50	56	130/440	300/1000	20D/10D
BOC-X-XX-06Xn	8.4±0.5	66	74	200/660	300/1000	20D/10D
BOC-X-XX-08Xn	9.8±0.5	91	101	200/660	300/1000	20D/10D
BOC-X-XX-12Xn	12.4±0.5	140	155	200/660	300/1000	20D/10D
BOC-X-XX-18Xn	12.4±0.5	140	155	400/1320	300/1000	20D/10D
BOC-X-XX-24Xn	14.4±0.5	181	201	400/1320	300/1000	20D/10D
BOC-X-XX-36Xn	16.4±0.5	208	255	400/1320	300/1000	20D/10D
BOC-X-XX-48Xn	19±0.5	280	344	400/1320	300/1000	20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
