Multipurpose cabling cable

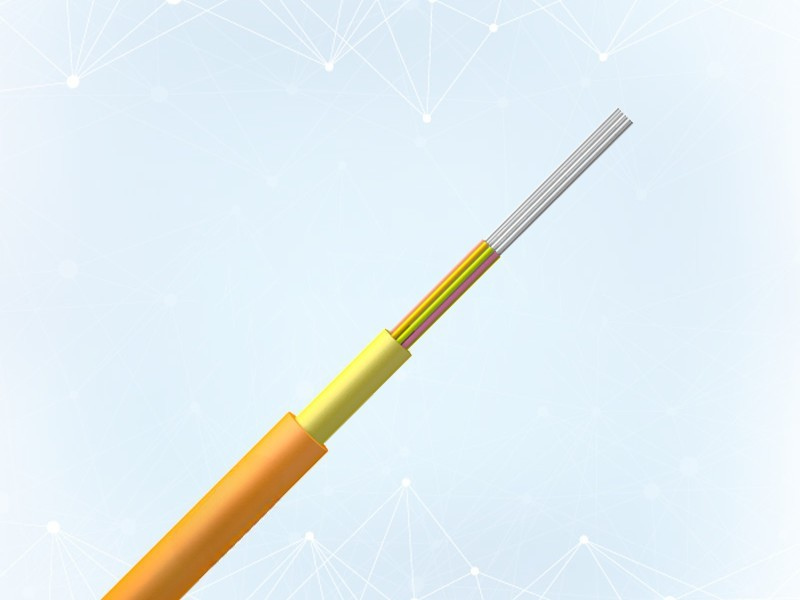

MPC multi-purpose cabling fiber optic cable is made of multiple Φ900μm flame retardant tight sheathed optical fibers as the optical transmission medium, covered with a layer of aramid as the stress reinforcement unit, and sheathed with a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant).

Description

Product Applications

• Indoor cabling

• Fiber optic cables that serve as the backbone of the building

• Multi-core fiber optic movable connection patch cords

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time,
you can customize it with special design. In addition to ordinary PVC products, there are also products that have passed UL OFNR AND OFNP certifications respectively; LSZH products are available in
different materials and can meet the requirements of IEC60332-1 or IEC60332-3C.

Features:

• Tightly sheathed fiber for easy stripping and use

• Tight-jacketed optical fiber has good flame retardant properties

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	Fiber optic cable reference diameter （mm）	Fiber optic cable reference weight （kg/km）		Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static （mm）
Fiber optic cable model	Fiber optic cable reference diameter （mm）	PVC sheath	LSZH sheath	Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static （mm）
MPC-X-XX-04Xn	4.8±0.3	16	18	130/440	300/1000	20D/10D
MPC-X-XX-06Xn	5.1±0.3	20	23	130/440	300/1000	20D/10D
MPC-X-XX-08Xn	5.6±0.3	27	31	130/440	300/1000	20D/10D
MPC-X-XX-12Xn	6.2±0.3	32	36	130/440	300/1000	20D/10D
MPC-X-XX-24Xn	8.1±0.3	53	57	200/660	300/1000	20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
