Multipurpose cabling cable

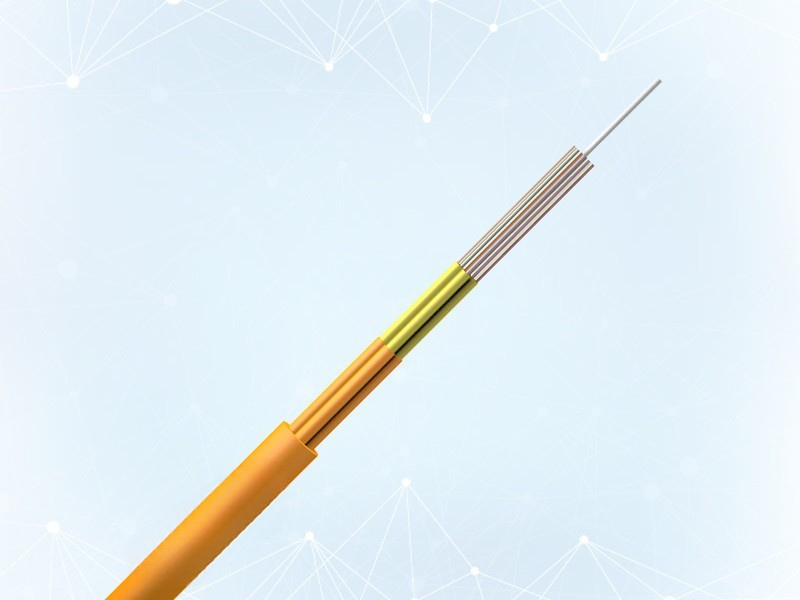

MPC multi-purpose cabling optical cable is made of multi-core sub-unit (Φ900μm tightly sheathed optical fiber, aramid reinforcing element), non-metallic center reinforcing core, optical cable sub-unit layer twisted in the center reinforcing core to form a cable core, and the outermost layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) sheath, the maximum number of cores of the optical cable can reach 288 cores.

Description

Product Applications

• Indoor cabling

• Fiber optic cables that serve as the backbone of the building

• Multi-core fiber optic movable connection patch cords

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time,
you can customize it with special design. In addition to ordinary PVC products, there are also products that have passed UL OFNR AND OFNP certifications respectively; LSZH products are available in
different materials and can meet the requirements of IEC60332-1 or IEC60332-3C.

Features:

• Stranded cable structure, non-metallic center reinforcing core enables the cable to withstand greater tensile force

• Tight-jacketed optical fiber has good flame retardant properties

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	Fiber optic cable reference diameter （mm）	Fiber optic cable reference weight （kg/km）		Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static （mm）
Fiber optic cable model	Fiber optic cable reference diameter （mm）	PVC sheath	LSZH sheath	Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static （mm）
MPC-X-XX-24Xn	12.3±0.5	117	124	200/660	300/1000	20D/10D
MPC-X-XX-36Xn	14.5±0.5	171	180	200/660	300/1000	20D/10D
MPC-X-XX-48Xn	14.8±0.5	161	170	400/1320	300/1000	20D/10D
MPC-X-XX-72Xn	17.5±0.5	244	254	400/1320	300/1000	20D/10D
MPC-X-XX-96Xn	20.7±0.5	351	366	400/1320	300/1000	20D/10D
MPC-X-XX-144Xn	24.8±0.5	443	451	400/1320	300/1000	20D/10D

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
