Planar Waveguide Splitter

PLC Splitters is a product based on planar optical waveguide technology. They feature low insertion loss and polarization-dependent loss, as well as high channel uniformity.

Description

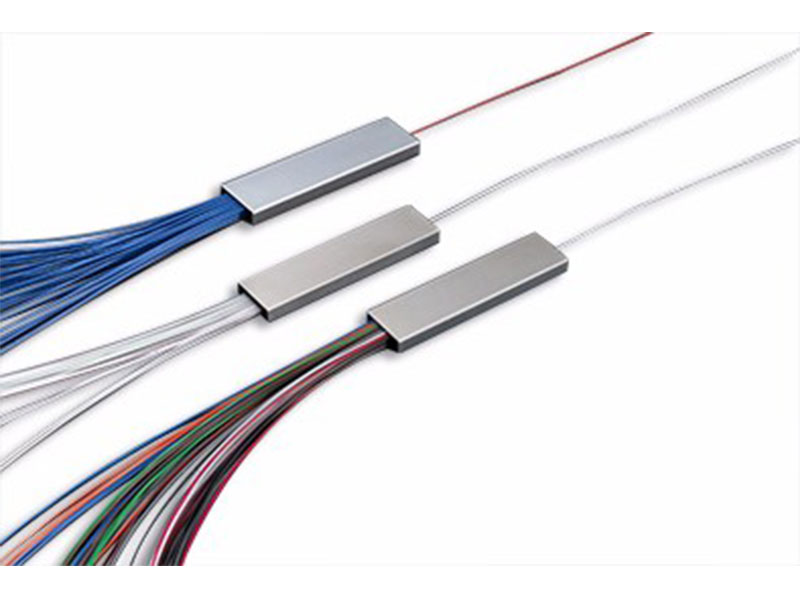

Steel-sealed splitter package size:

specification	1:2	1:16	1:64	2:2	2:16	2:64
L (mm)	40	50	60	40	50	60
W (mm)	4	7	12	4	7	12
H (mm)	4	4	4	4	4	4

Miniature Splitter Package Size:

specification	1:2	1:16	1:32	1:64	2:2	2:16	2:32	2:64
L(mm)	60	60	80	100	60	60	80	80
W(mm)	7	12	20	40	7	12	20	40
H(mm)	4	4	6	6	4	4	6	6

Cassette splitter package size：

specification	1:2	1:16	1:64	2:2	2:16	2:64
L(mm)	100	120	140	100	120	140
W(mm)	80	80	80	80	80	80
H(mm)	10	18	29	100	120	120

Chip splitter package size:

specification	1:2	1:16	1:32	1:64	2:2	2:16	2:32	2:64
L (mm)	130	130	130	130	130	130	130	130
W (mm)	100	100	100	100	100	100	100	100
H (mm)	25	50	102	206	25	50	102	206

Tray Sheet Package Size:

specification	1:2	1:32	1:64	2:2	2:32	2:64
L (mm)	302	302	302	302	302	302
W (mm)	180	180	180	180	180	180
H (mm)	25	50	100	25	50	100

Tray Sheet Package Size:

specification	1:2	1:64	2:2	2:64
L (mm)	483	483	483	483
W (mm)	200	200	200	200
H (mm)	44.5	89	44.5	89

Product standards: It meets Telcordia GR-1209-CORE Issue 4 and Telcodia GR-1221-CORE Issue 3 standards, YD/T2000.1-2009 standards and RoHS regulations.

Features:

Small size, compact mechanism, low insertion loss, polarization loss, and uniform power distribution.
Connectors are available in SC/LC/FC, and other types can be customized.

Ordering information

Production process	Splitting ratio	Form factor	End-forming method	Plug type	Pigtail type	Enter the pigtail length
P=PLC	1002=1：2	M = miniature package	F = pigtail with plug	SU=SC/UPC	25 = 0.25mm bare fiber	05 = 0.5 meters
F=FBT	1004=1：4	B = Box package	N = pigtail without plug	SA=SC/APC	09 = 0.9mm loose tube	10 = 1.0 meters
—	1008=1：8	P = Chip package	A = Adapter type	FU=FC/UPC	20=2.0mm loose tube	15 = 1.5 meters
—	1016=1：16	T = tray package	—	FA=FC/APC	30 = 3.0mm loose tube	20 = 2.0 meters
—	1032=1：32	R = Rackmount package	—	LU=LC/UPC	—	XX = custom length
—	1064=1：64	—	—	LA=LC/APC	—	—
—	2002=2：2	—	—	—	—	—
—	2004=2：4	—	—	—	—	—
—	2008=2：8	—	—	—	—	—
—	2016=2：16	—	—	—	—	—
—	2032=2：32	—	—	—	—	—
—	2064=2：64	—	—	—	—	—

PN code = Y – production process – splitting ratio – packaging form – end forming method – plug type – pigtail type – input pigtail length – output pigtail length

Example: PN code: YP-1008-B-F-SU-20-10-20

Representation: PLC type 1:8 cassette package, pigtail ends, connector type SC/UPC, pigtail using 2.0mm loose tube, input end length 1.0 meters, output end length 2.0 meters.
