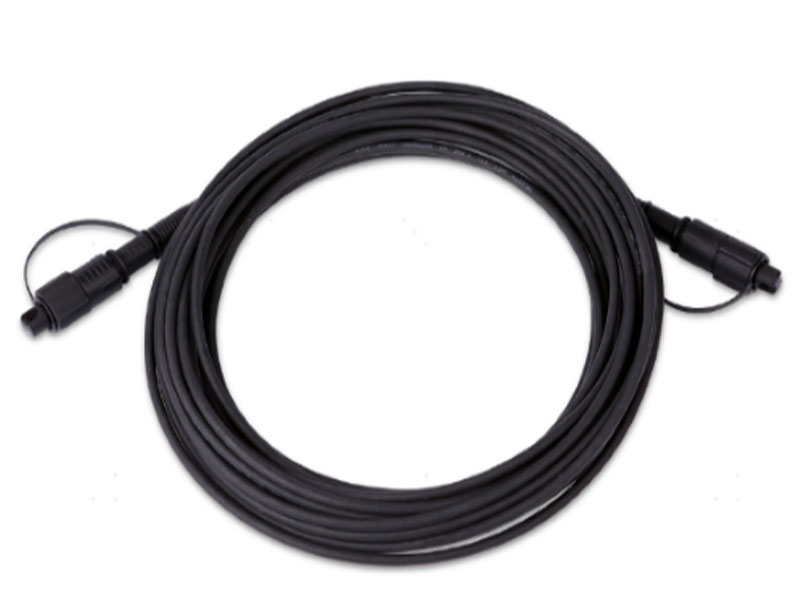

Pre-terminated waterproof connectors

A small, high-waterproof SC single-core waterproof connector. Built-in SC connector inner core, made of high and low temperature resistance, acid and alkali corrosion resistance, ultraviolet resistance special plastic shell, auxiliary waterproof rubber pad, its sealing and waterproof performance up to IP68 level. It is suitable for 3.0&5.0mm single-core round fiber optic cable or FTTH butterfly drop fiber optic cable.

Description

Features:

Low insertion loss, high return loss
The screw bayonet tightening mechanism ensures a long-term and reliable connection
The guide mechanism can be blindly plugged with one hand, which is simple and quick to install
Sealing design: waterproof, dustproof, anti-corrosion and other characteristics
Small size, easy to operate, rugged and durable
RoHS compliant

Ordering information

A-end connectors	A-end grinding method	B-terminal connectors	B-end grinding method	Fiber type	Fiber optic cable type	length
SC	PC	SC	PC	G652D	2.0×5.3mm	1 meter
—	UPC	—	UPC	G657A2	5.0mm	5 meters
—	APC	—	APC	customize	customize	10 meters
—	—	—	—	—	—	20 meters
—	—	—	—	—	—	customize
