Ribbon Ribbon Cable

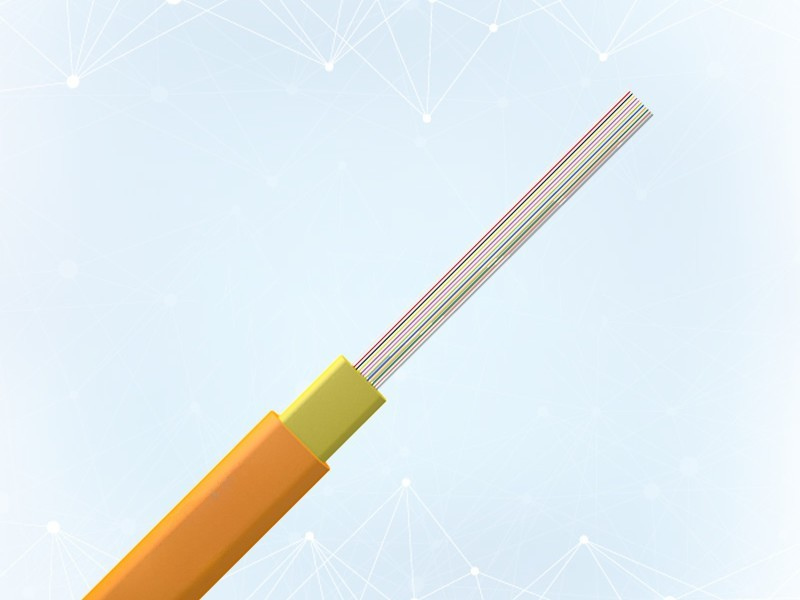

RBC Fiber Optic Ribbon Flat Fiber Optic Cable uses optical fiber ribbon as the optical transmission medium, covered with a layer of aramid as a force reinforcement unit, and extruded with a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) sheath, with a maximum number of cores up to 24 cores.

Description

Product Applications

• Indoor wiring

• Interconnection of instruments and communication equipment

• Ribbon connection jumpers

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time, you can customize it with special design. In addition to ordinary PVC products, there are also products that have passed UL OFNR AND OFNP certifications respectively; LSZH products are available in a variety of materials and can meet IEC60332-1 or IEC60332-3C certifications.

Features:

• Optical fiber ribbon is adopted, and the integration is high

• Aramid reinforced elements make the cable have excellent tensile performance

• Corrosion-resistant, waterproof, UV-proof, flame-retardant, environmental protection and other advantages of outer protection material

Structural parameters

Fiber optic cable model	Fiber optic cable reference size （mm）	The number of fiber cores is composed	Fiber optic cable reference weight （kg/km）	Tensile force is allowed Long-term/short-term （N）	Allowable squashing force Long-term/short-term （N/100mm）	Bend radius Dynamic/Static (mm)
RBC-X-XX-4	(3.7±0.3)×(2.3±0.3)	4 fiber strips	4.7	6.6	80/150	300/1000	25D/12.5D
RBC-X-XX-12	(4.8±034)×(2.3±0.3)	12 fiber strips	5.9	8.0

Fiber optic cable model

Fiber optic cable reference size

（mm）

The number of fiber cores is composed

Fiber optic cable reference weight

（kg/km）

Tensile force is allowed

Long-term/short-term

（N）

Allowable squashing force

Long-term/short-term

（N/100mm）

Bend radius

Dynamic/Static
(mm)

PVC sheath

LSZH sheath

RBC-X-XX-4

(3.7±0.3)×(2.3±0.3)

4 fiber strips

4.7

6.6

80/150

300/1000

25D/12.5D

RBC-X-XX-12

(4.8±034)×(2.3±0.3)

12 fiber strips

5.9

8.0

Note: Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
