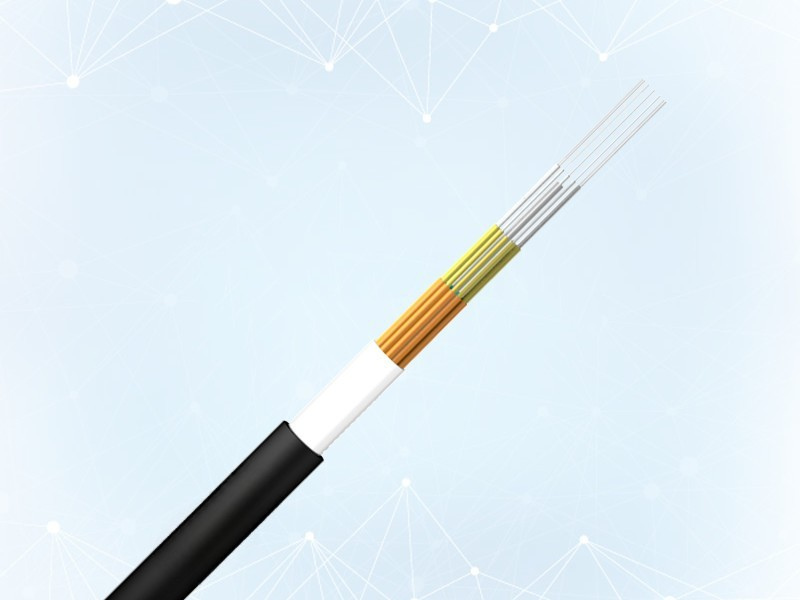

GJA waterproof tail cable uses a single-core optical cable (Φ900μm tightly sheathed optical fiber, aramid reinforcing element) as a sub-unit, a non-metallic center reinforcing core, and the sub-unit of the optical cable is twisted in the center reinforcing core to form a cable core, covered with an aluminum tape moisture-proof layer, and the outermost layer is extruded with a layer of polyethylene (PE) sheath.

Description

Product Applications

Indoor integrated wiring
Connection of outdoor-to-indoor fiber optic cable wiring equipment

Product standards

It can meet any of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11 standards. If you need more than one to meet at the same time, you can customize it with special design.

Features:

• Stranded cable structure, non-metallic center reinforcing core enables the cable to withstand greater tensile force

• Corrosion-resistant, waterproof, anti-ultraviolet and other advantages of outer protection material

• Aluminum strip has good moisture resistance

Structural parameters

Fiber optic cable model	Fiber optic cable diameter （mm）	Fiber optic cable reference weight （kg/km）	Allowable tensile force Long/Short Term (N)	Allowable Flattening Force Long/Short Term (N/100mm)	Bend Radius Dynamic/Static (mm)
GJA-II-YX-4Xn	8.3±0.5	58	130/440	300/1000	20D/10D
GJA-II-YX-6Xn	9.2±0.5	73	200/660	300/1000	20D/10D
GJA-II-YX-8Xn	10.6±0.5	96	200/660	300/1000	20D/10D
GJA-II-YX-12Xn	13.4±0.5	155	200/660	300/1000	20D/10D

Note: The optical cable sub-unit is a 2.0mm sub-unit. Different sizes and specifications can be customized according to customer requirements.

Optical properties

Fiber type	attenuation				Full injection bandwidth	Active mode bandwidth	10G Ethernet link length	Minimum bend radius
condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
condition	Typical	maximum	Typical	maximum	850/1300nm	850nm	850nm	/
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	—	—	—	—	—	16
G657A1	0.36/0.22	0.5/0.4	—	—	—	—	—	10
G657A2	0.36/0.22	0.5/0.4	—	—	—	—	—	7.5
50/125	—	—	3.0/1.0	3.5/1.5	≥500/500	—	—	30
62.5/125	—	—	3.0/1.0	3.5/1.5	≥200/500	—	—	30
OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	—	—	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	—	—	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
